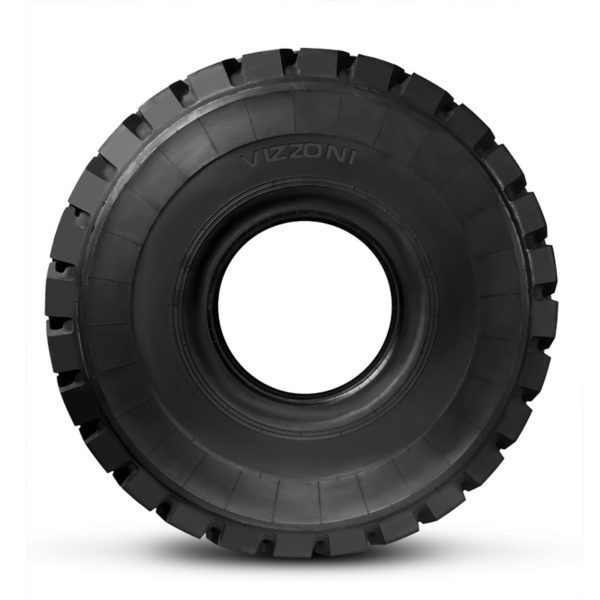

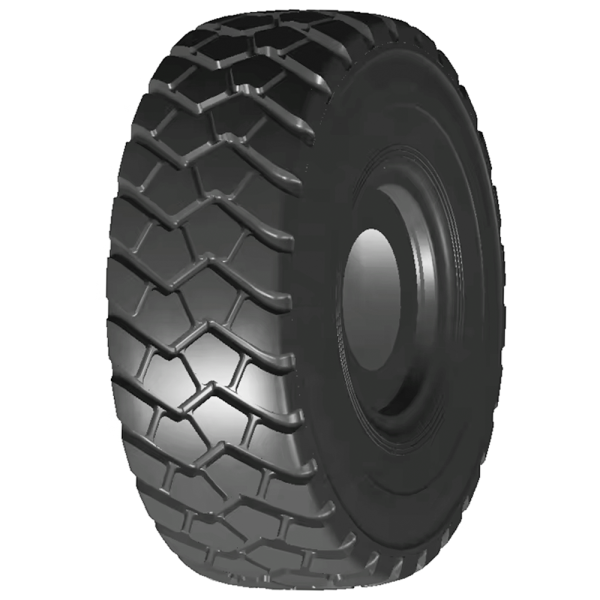

VZB5
The VZB5 is a specialized tire designed for articulated dump trucks and loaders, featuring a unique pattern design with an elegant foot impression. It offers excellent traction and grip performance. Being cut and puncture resistant makes the tyre optimal for Scrapper machines.
Key Features & Benefits:
Application: Specially designed for mine dump trucks.
Design: Features a special pattern design with an elegant foot expression.
Performance: Delivers excellent traction and grip performance.
Durability: Engineered to be cut and puncture resistant.
Enquiry about VZB5
Enter the security code shown above
Description

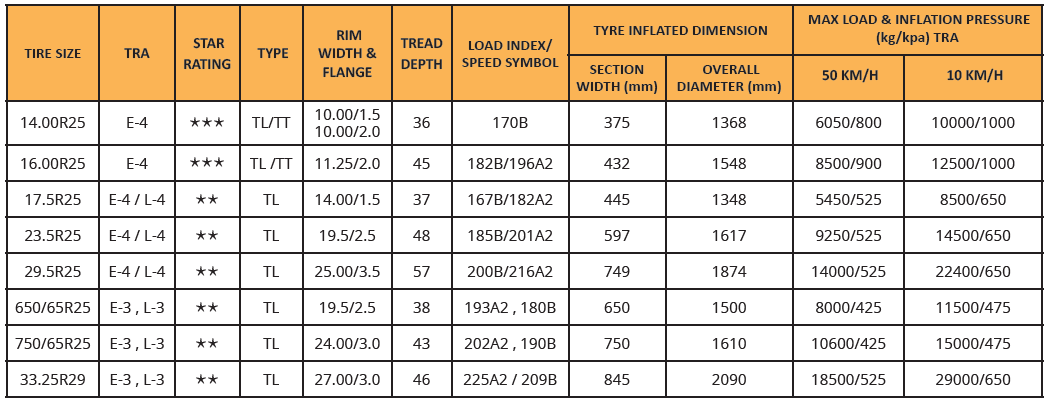

| CODE | SIZE | TRA CODE | STAR RATING | LI / SS | TYPE | OVERALL DIAMETER (mm) | SW (mm) | MAX. LOAD & PRESSURE (kg/kpa) | |
|---|---|---|---|---|---|---|---|---|---|
| 50km/h | 25km/h | ||||||||
| B5J1403 | 14.00R25 | E4 | ★★★ | 170B | TL / TT | 1368 | 375 | 6050/800 | 10000/1000 |
| B5J1603 | 16.00R25 | E4 | ★★★ | 182B / 196A2 | TL / TT | 1548 | 432 | 8500/900 | 12500/1000 |
| B5J1702 | 17.5R25 | E4 / L4 | ★★ | 167B / 182A2 | TL | 1348 | 445 | 5450/525 | 8500/650 |
| B5J2302 | 23.5R25 | E4 / L4 | ★★ | 185B / 201A2 | TL | 1617 | 597 | 9250/525 | 14500/650 |
| B5J2902 | 29.5R25 | E4 / L4 | ★★ | 200B / 216A2 | TL | 1874 | 749 | 14000/525 | 22400/650 |
| B5J6502 | 650/65R25 | E3 / L3 | ★★ | 193A2 , 180B | TL | 1500 | 650 | 8000/425 | 11500/475 |
| B5J7502 | 750/65R25 | E3 / L3 | ★★ | 202A2 , 190B | TL | 1610 | 750 | 10600/425 | 15000/475 |
| B5N3302 | 33.25R29 | E3 / L3 | ★★ | 225A2 / 209B | TL | 2090 | 845 | 18500/525 | 29000/650 |
