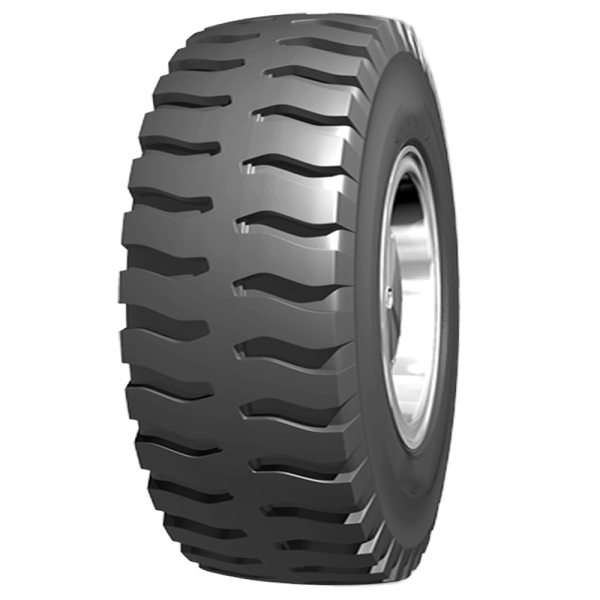

VZA9
The VZA9 is a rigid-dump truck tire featuring a deep tread design specifically engineered for severe and rocky surfaces. It is well-suited for use in underground mining, open pits, and quarries. The tire incorporates a specially designed sidewall that provides extended protection against cutting, while also delivering an excellent combination of traction, stability, and a comfortable ride. The deep lugs provide even wearing and long service life.
Key Features & Benefits:
Severe Environment Capability: Deep tread is designed for severe and rocky surfaces.
Versatile Mining Use: Ideal for underground mining, open pits, and quarries.
Enhanced Protection: Specially designed sidewall provides extended protection from cutting.
Performance Balance: Provides an excellent combination of traction, stability, and a comfortable ride.
Enquiry about VZA9
Enter the security code shown above
Description

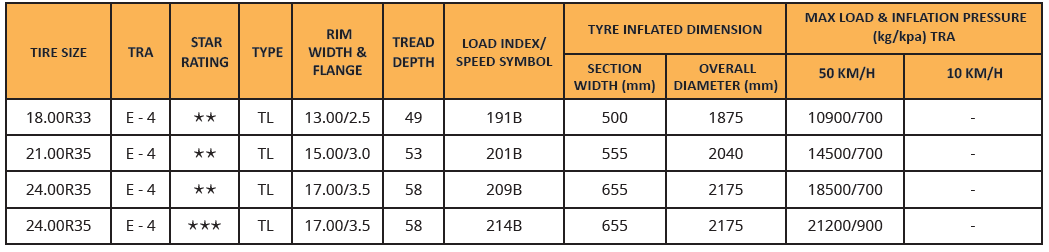

| CODE | SIZE | TRA CODE | STAR RATING | LI / SS | TYPE | OVERALL DIAMETER (mm) | SW (mm) | MAX. LOAD & PRESSURE (kg/kpa) | |
|---|---|---|---|---|---|---|---|---|---|
| 50km/h | 10km/h | ||||||||
| A9R1802 | 18.00R33 | E4 | ★★ | 191B | TL | 1875 | 500 | 10900/700 | – |
| A9T2102 | 21.00R35 | E4 | ★★ | 201B | TL | 2040 | 555 | 14500/700 | – |
| A9T2402 | 24.00R35 | E4 | ★★ | 209B | TL | 2175 | 655 | 18500/700 | – |
| A9T2403 | 24.00R35 | E4 | ★★★ | 214B | TL | 2175 | 655 | 21200/900 | – |
