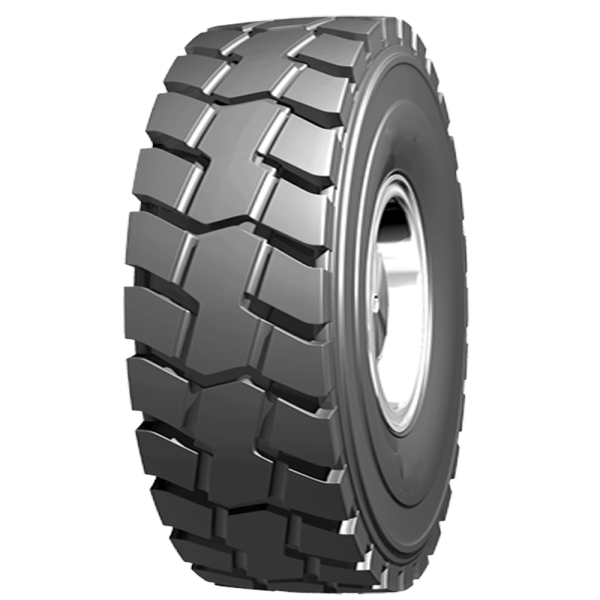

VZB3
The VZB3 is a specialized tire designed for port equipment, including straddle carriers and container handlers. It features a special construction design with an ultra-deep tread, which provides excellent carrying capacity and a long service life. Additionally, the tire offers excellent traction and grip performance.
Key Features & Benefits:
Versatile Port Use: Suitable for straddle carriers, container handlers, and other port equipment.
Durable Design: Built with a special construction design and an ultra-deep tread.
High Capacity: Offers excellent carrying capacity and long service life.
Performance: Provides excellent traction and grip performance.
Enquiry about VZB3
Enter the security code shown above
Description

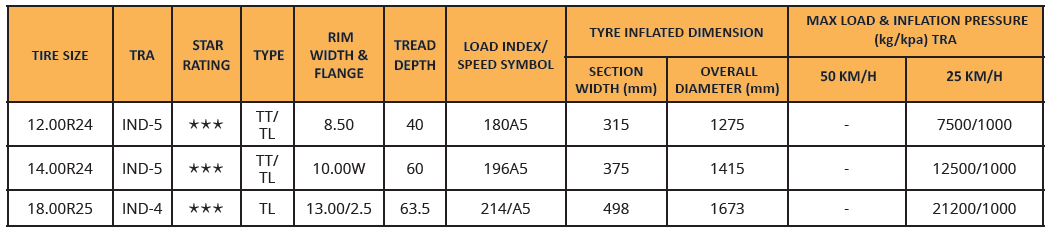

| CODE | SIZE | TRA CODE | STAR RATING | LI / SS | TYPE | OVERALL DIAMETER (mm) | SW (mm) | MAX. LOAD & PRESSURE (kg/kpa) | |
|---|---|---|---|---|---|---|---|---|---|
| 50km/h | 25km/h | ||||||||
| B3I1203 | 12.00R24 | IND-5 | ★★★ | 180A5 | TT / TL | 1275 | 315 | – | 7500/1000 |
| B3I1403 | 14.00R24 | IND-5 | ★★★ | 196A5 | TT / TL | 1415 | 375 | – | 12500/1000 |
| B3J1803 | 18.00R25 | IND-4 | ★★★ | 214A5 | TL | 1673 | 498 | – | 21200/1000 |
