VZA1

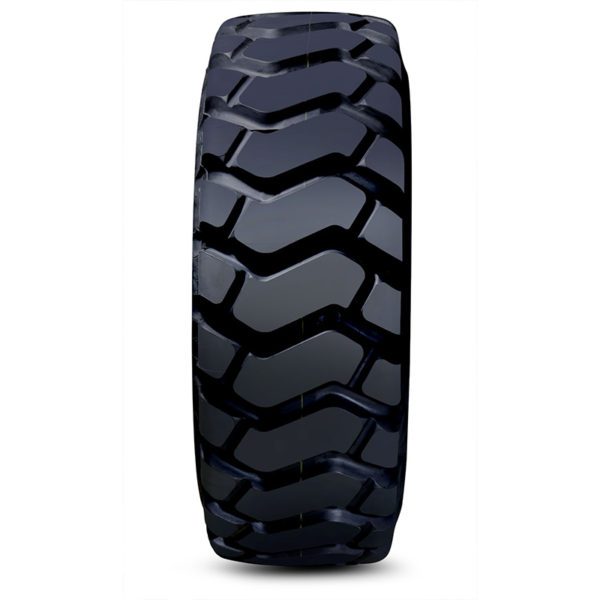

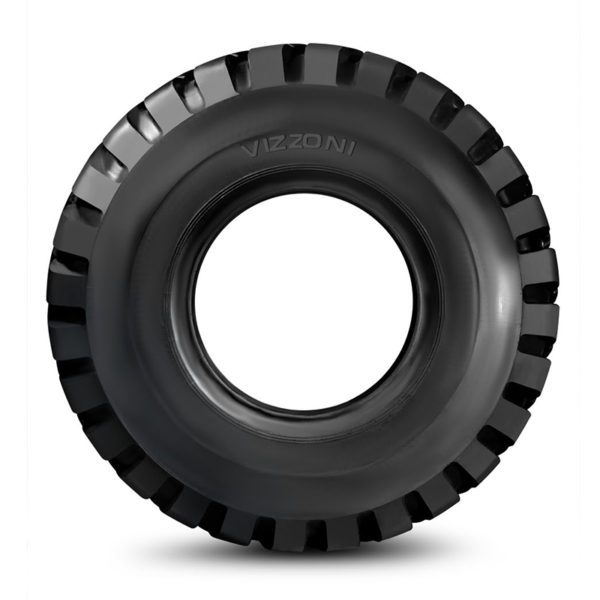

The VZA1 is a versatile, high-performance OTR tire specifically designed for heavy equipment, including loaders and dozers used in construction and stockpile operations (Mines & Quarries). It is engineered to provide superior traction, better heat dissipation and ensures a very comfortable ride through its superb stability. Additionally, the tire features an inner liner made with a specially designed compound to effectively prevent air leakage.
Key Features & Benefits:
Versatile Application: Features a tread pattern designed for loaders, dozers, and other construction and stockpile equipment.
Superior Traction: Optimized for excellent performance in demanding terrain.
Comfort & Stability: Ensures a comfortable ride by providing superb stability.
Enhanced Reliability: The inner liner uses a specially designed compound to prevent air leakage.
Enquiry about VZA1
Enter the security code shown above
Description
| CODE | SIZE | TRA CODE | STAR RATING | LI / SS | TYPE | OVERALL DIAMETER (mm) | SW (mm) | MAX. LOAD & PRESSURE (kg/kpa) | |
|---|---|---|---|---|---|---|---|---|---|
| 50km/h | 10km/h | ||||||||
| A1J1702 | 17.5R25 | E3 / L3 | ★★ | 167B / 182A2 | TL | 1348 | 445 | 5450/525 | 8500/650 |
| A1J2002 | 20.5R25 | E3 / L3 | ★★ | 177B / 193A2 | TL | 1493 | 521 | 7300/525 | 11500/650 |
| A1J2302 | 23.5R25 | E3 / L3 | ★★ | 185B / 201A2 | TL | 1617 | 597 | 9250/450 | 14500/575 |
| A1J2602 | 26.5R25 | E3 / L3 | ★★ | 193B / 209A2 | TL | 1750 | 673 | 11500/525 | 18500/650 |
| A1J2902 | 29.5R25 | E3 / L3 | ★★ | 200B / 216A2 | TL | 1874 | 749 | 14000/525 | 22400/650 |
| A1N2902 | 29.5R29 | E3 / L3 | ★★ | 202B / 218A2 | TL | 1975 | 749 | 15000/525 | 23600/650 |
“`
