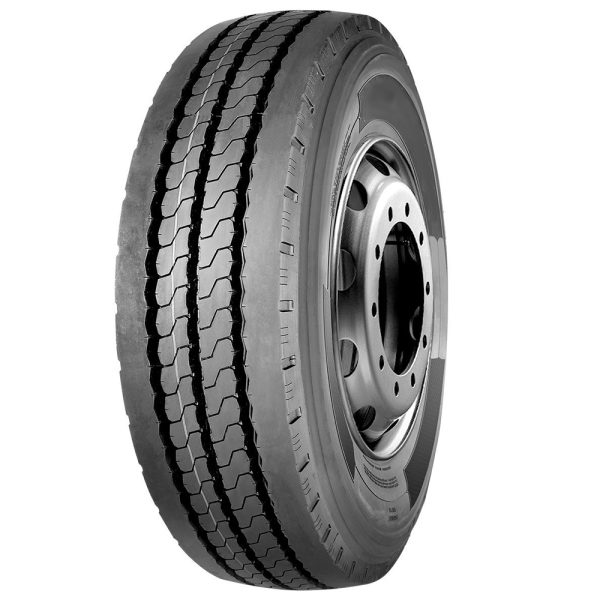

VZ658
The VZ658 is a high-performance commercial tire engineered for durability and reliability in demanding transport applications. It utilizes a low heat-generating compound in the tread base to provide excellent durability, as well as wear and cut resistance. The upper tread formula is specifically designed for increased cut, tear, and abrasion resistance. Furthermore, it features a 3-middle groove design that offers excellent guiding and drainage properties, making it suitable for both guiding (steer) and drag (trailer) wheel positions.
Key Features & Benefits
Durability & Protection: Low heat-generating tread base compound provides excellent durability and resistance to wear and cuts.
Rugged Performance: Upper tread formula enhances resistance to cuts, tears, and abrasion.
Versatile Design: 3-middle groove design offers excellent guiding and drainage properties, making it appropriate for guiding and drag wheel positions.

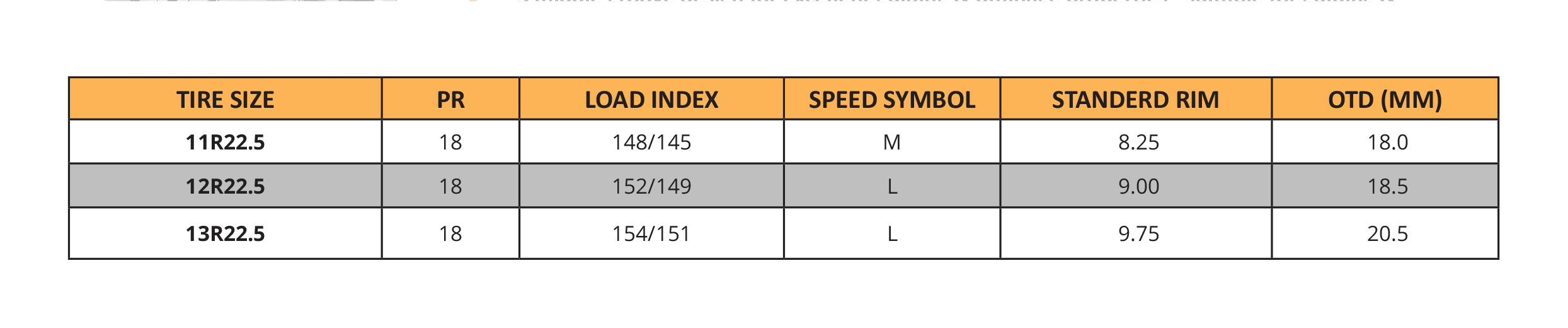

Technical Specifications
Tire Size 11R22.5: Features a 18 PR, 148/145 Load Index, M Speed Symbol, 8.25 Standard Rim, and 18.0 mm OTD.
Tire Size 12R22.5: Features a 18 PR, 152/149 Load Index, L Speed Symbol, 9.00 Standard Rim, and 18.5 mm OTD.
Tire Size 13R22.5: Features a 18 PR, 154/151 Load Index, L Speed Symbol, 9.75 Standard Rim, and 20.5 mm OTD.
Enquiry about VZ658
Enter the security code shown above
Description
| CODE | SIZE | PLY RATING | LI/SS | STANDARD RIM | OVERALL Diameter | SW ( mm ) | LOAD INDEX (kg) | PRESSURE INDEX (kpa) | OTD (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 58V1100 | 11R22.5 | 18 | 148/145 M | 8.25 | 1054 | 279 | 3000 / 2725 | 830 | 18.00 |
| 58V1200 | 12R22.5 | 18 | 152/149 L | 9.00 | 1085 | 300 | 3550 / 3250 | 930 | 18.50 |
| 58V1300 | 13R22.5 | 18 | 154/151 L | 9.75 | 1124 | 320 | 3750 / 3450 | 830 | 20.50 |
