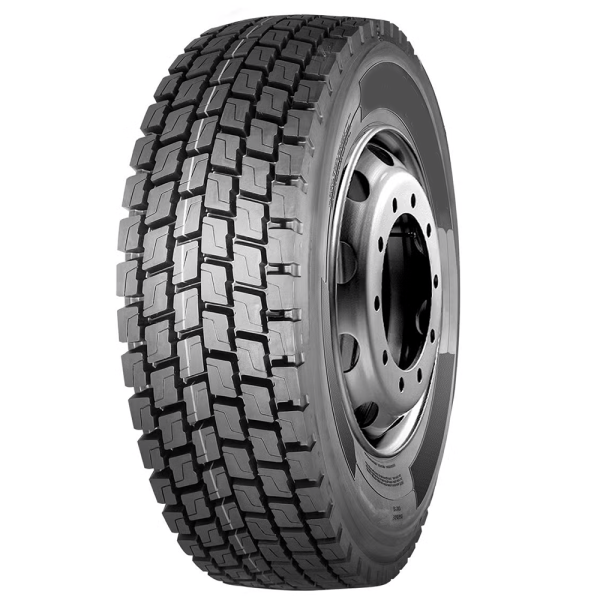

VZ646
The Vizzoni VZ646 is a robust commercial tire engineered for long-term service life and reliable driving performance. It features wider and horizontal grooves that significantly improve self-cleaning ability and overall driving performance. To address common maintenance concerns, the tire incorporates interconnecting ribs between pattern blocks, which reduce block movement and help decrease uneven wear. Built with high-wear-resistant tread blocks that generates low heat, the VZ646 is designed to ensure a long service life for heavy-duty applications. Best suitable for drive axles.
Key Features & Benefits
Self-Cleaning: Wider and horizontal grooves enhance self-cleaning capabilities.
Even Wear: Interconnecting ribs between pattern blocks minimize movement and reduce uneven tread wear.
Long-Lasting: High wear resistance and low heat generation contribute to an extended service life.
Technical Specifications
Available Sizes: 295/80R22.5 and 11R22.5.
Description

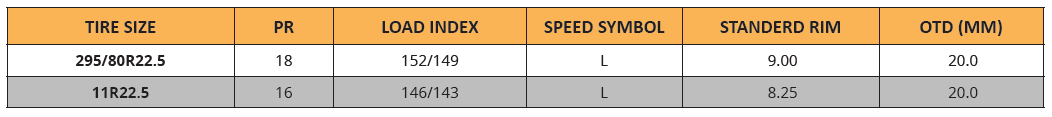

| CODE | SIZE | PLY RATING | LI/SS | STANDARD RIM | OVERALL Diameter | SW ( mm ) | LOAD INDEX (kg) | PRESSURE INDEX (kpa) | OTD (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 46V2980 | 295/80R22.5 | 18 | 152/149 L | 9.00 | 1044 | 298 | 3550 / 3250 | 900 | 20.00 |
| 46V1100 | 11R22.5 | 16 | 146/143 L | 8.25 | 1054 | 279 | 3000 / 2725 | 830 | 20.00 |
