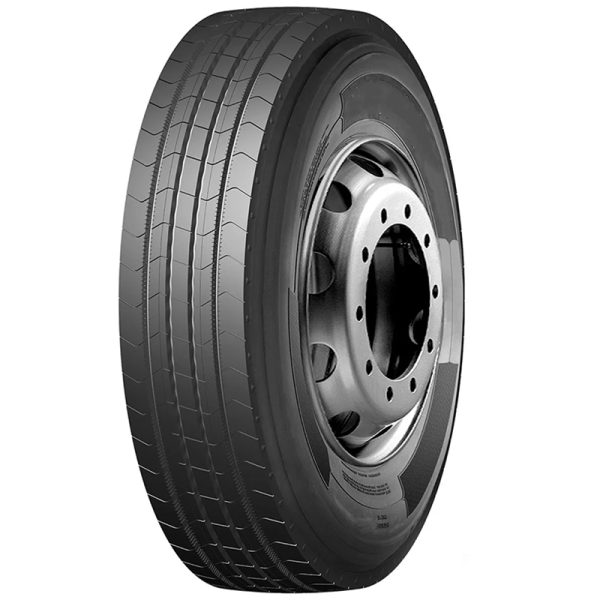

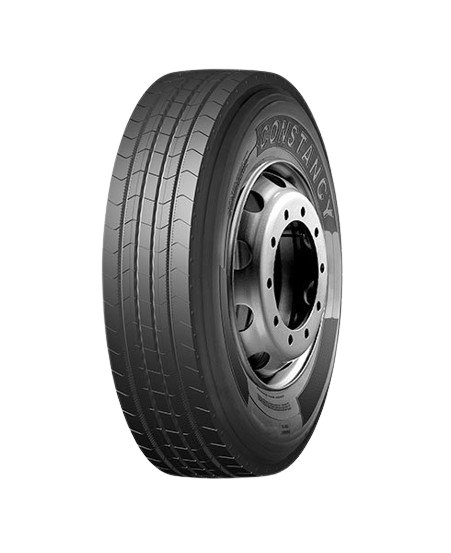

VZ545
The Vizzoni VZ545 is a premium commercial tire designed for maximum efficiency and safety in heavy-duty transport applications. It features increased sidewall strength and low rolling resistance, helping to optimize fuel efficiency during long hauls. Designed for easy maintenance, the VZ545 TBR Tire allows for extreme ease in measuring sidewall wear. Additionally, its tread is engineered for improved grip on wet and slippery surfaces, ensuring reliable performance in challenging weather conditions.
Key Features & Benefits
Enhanced Durability: Increased sidewall strength for robust performance.
Fuel Efficient: Engineered for low rolling resistance.
Easy Maintenance: Designed for extreme ease in measuring sidewall wear.
Wet-Weather Safety: Improved grip on wet and slippery surfaces.
Technical Specifications
Ply Rating (PR): All models feature an 18-ply rating.
Speed Symbol: L.
Available Sizes: 215/75R17.5, 235/75R17.5, and 9.5R17.5.
Enquiry about VZ545
Enter the security code shown above
Description

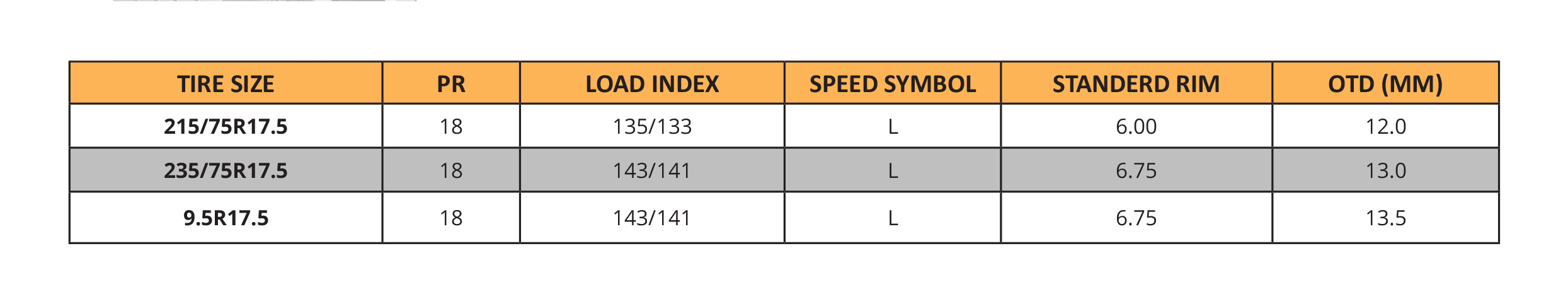

| CODE | SIZE | PLY RATING | LI/SS | STANDARD RIM | OVERALL Diameter | SW ( mm ) | LOAD INDEX (kg) | PRESSURE INDEX (kpa) | OTD (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 45Q2175 | 215/75R17.5 | 18 | 135/133 L | 6.00 | 767 | 211 | 2180 / 2060 | 860 | 12.00 |
| 45Q2375 | 235/75R17.5 | 18 | 143/141 L | 6.75 | 797 | 233 | 2725 / 2575 | 900 | 13.00 |
| 45Q9500 | 9.5R17.5 | 18 | 143/141 L | 6.75 | 836 | 234 | 2725/ 2575 | 875 | 13.50 |
